RX-84 Extra Wide Hot Knives

The RX-84 XL Series are general purpose extra-wide hot knives for cutting and sealing webbings and materials up to 10" (254mm), 13" (328mm), or 16" (400mm) wide. Extra-wide hot knives consist of multiple knives aligned end to end. They can be used for most hot knife applications, such as slings, tie downs and other wide synthetic materials. Heavy duty models can be used to cut materials up to approximately 3/4" (20mm) thick.

Download RX-84 Extra Wide Hot Knife brochure.

industrial hot knife, wide hot knife, sling hot knife
webbing cutter, sling webbing, nylon sling cutter

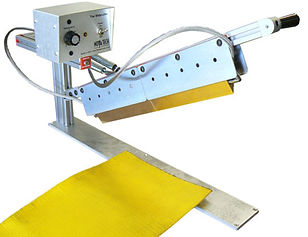

RX-84-SAN 10" Heavy-duty SS Hot Knife
10" (254mm) HOT KNIVES
RX-84-BAN

A general purpose heavy-duty hot knife using two heavy-duty brass knives aligned end-to-end for cutting materials up to 10” (254mm) wide.



RX-84-SAN

A general purpose heavy-duty hot knife using two heavy-duty stainless steel knives aligned end-to-end for cutting materials up to 10” (254mm) wide.



RX-84-SBN

A general purpose standard duty hot knife using two standard stainless steel knives aligned end-to-end for cutting materials up to 10” (254mm) wide. Designed to cut thin materials such as fabrics, ribbons and thin webbings up to 10 " (254mm) wide.

RX-84-BAN 10" heavy-duty brass knife
cutting 8" nylon webbing
13" (33cm) HOT KNIVES
RX-84-SBO



RX-84-SB0 Standard duty stainless steel knife using a 5" + 8" knife aligned end-to-end and is ideal for hot cutting ribbon, hook and loop, polypropylene webbing, and thin synthetic materials up to 13" (328mm) wide.



RX-84-BAO (brass) & RX-84-SAO (stainless)

RX-84-BAO is fitted with a 5" + 8" heavy duty brass knife for general purpose cutting and cutting and sealing thick materials up to 13" (328mm) wide.

RX-84-SAO is similar but uses the heavy-duty stainless steel knife.

RX-84 13"/ 33cm heavy-duty hot knife for sling and lifting webbing
RX-84-BAO 13" Heavy-duty Hot Knife
large hot knife, webcutter, sling cutter, nylon hot knife
16" (40cm) EXTRA WIDE HOT KNIVES
RX-84-BAP



RX-84-BAP is fitted with two 8" heavy duty brass knives for general purpose knife for many applications up to 16" (400mm) wide. Ideal for heavy webbings and slings.



RX-84-SAP



RX-84-SAP is fitted with two 8" heavy duty stainless steel knives for general purpose knife for many applications up to 16" (400mm) wide. Ideal for heavy webbings and slings.

RX-84-BAP 16" Heavy-duty Hot Knife
RX-84-SBP



RX-84-SBP is fitted with two X 8" standard duty stainless steel knives for general purpose knife for many applications up to 16" (400mm) wide. It is designed for cutting lightweight fabrics, ribbon and other synthetic materials.

Brass knives vs. Stainless knives

What's the difference?



Knives that cut using heat must be able to efficiently transfer the thermal energy from the heater core to the knife edge. Brass is the most efficient alloy for this purpose. However, being a relatively soft metal, brass will wear down faster than a harder metal such as stainless steel. Stainless steel does not transfer heat as well and must therefore be operated at a higher temperature to do the same work as a brass knife. This uses more energy and may shorten heater life.

RX-84-BAP Extra wide hot knife for sling & lift webbig
RX-84-SBP 16" Hot knife
wide hot knife, large hot knife, sling cutter, heavy duty hot knife
Supplemental Safety Guards

Fit any of our industrial hot knives with optional stainless-steel safety guards.



RX-84-BAP with Optional Safety Guards

Copyright 2016 © All rights reserved.

NOVA TECH International, LLC • Graham, North Carolina USA • 336-513-5200 • 800-794-6682 • FAX 336-513-5213 • email

USA & Canada

​for more information

1-800-794-6682

CALL US NOW !

© 2013 NOVA TECH International, LLC All Rights Reserved.

Webcutter Hinges

Our hinges are one of the most important components of the Webcutter hot knife. They must allow free movement of the rotating knife without excess play for hundreds of thousands of cycles. These hinges have gone through several design improvements over the years, as shown below. To adjust them, note the video to the right of the hinge type.

Evolution of the Webcutter hinges from 1998 to present:
